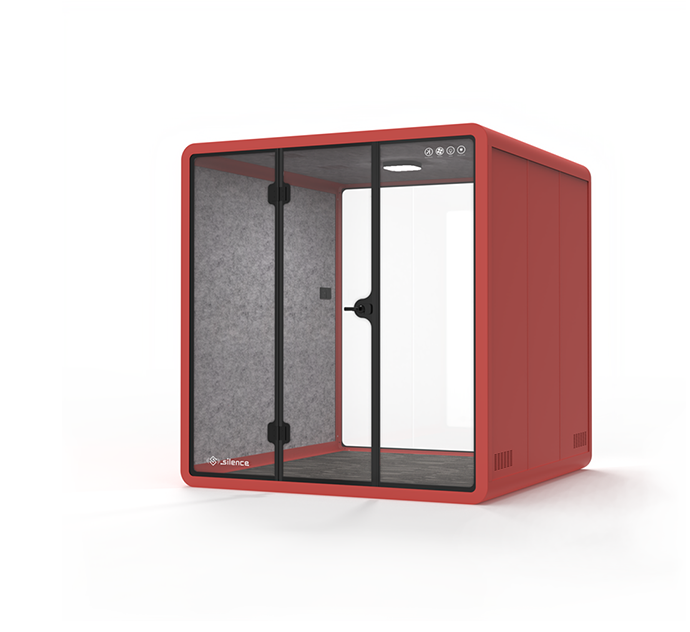

J series XL
Meeting Booth
Lock and buckle type connection, more secure. High-quality chrome-plated aluminum alloy frame, environmentally friendly and recyclable.
SOUNDPROOFING
30±5dB
SINGLE FAN AIRFLOW
170CFM
LIGHTING
24W
01
Main material
2-3MM thick T6065 aluminum profile frame; lock catch plus screws; aluminum alloy finish top plate bottom plate, solid core filled sound insulation; aluminum pool car shock rubber.
02
Glass panel
Front 5+5mm laminated 3C certified train-level safetytempered ultra-clear glass door; rear 10mm singlelayer C certified train-level safety tempered ultra-clear glass.
03
Power and lighting
Adapt to 100-240V/50-60Hz and 12V-USB powersupply; the cabin equipped with internationalsockets and USB interfaces, and there are alsoreserved cabin exterior connection ports andnetwork cable ports; 4000K color temperature LED,light source light: 80-90lm/w, 24W flat light source,to provide continuous and stable lighting for thecabin, reduce visual fatigue, three-color lights, andswitch at will between work and rest modes.
04
Ventilation system
PD long-path maze-style low-noise fresh air system,with anti-leak sound design to reduce soundinteraction between the cabin and the outside,complete a cabin air update every 2-3 minutes,ensuring that the cabin air is fresh and avoidingstuffiness.
05
Carpet
Detachable environmental protection floor mat,non-fluidized butyl rubber applied to the modularfloor mat underlay, woven surface of short PE fiberwith touch ABS bracket cushion layerand switch atwill between work and rest modes.
06
Door lock
The door lock uses a high-quality zinc alloy lock,which is beautiful and atmospheric, and has strongcorrosion resistance.The lock core material is a brasscore, which is safe and wear-resistant.
Color customization
The color of the exterior finishes and interiorfinishes can be customized.
Exterior Finishes
Interior Finishes
Furniture selection
Various styles of furniture areavailable for selection.
Model S specific
Model M specific
