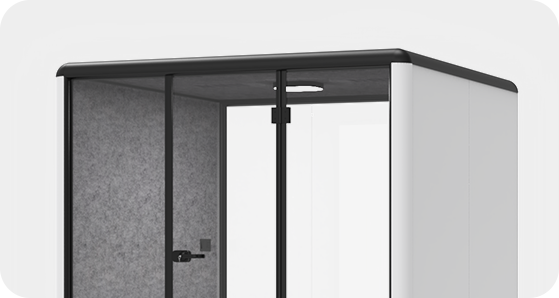

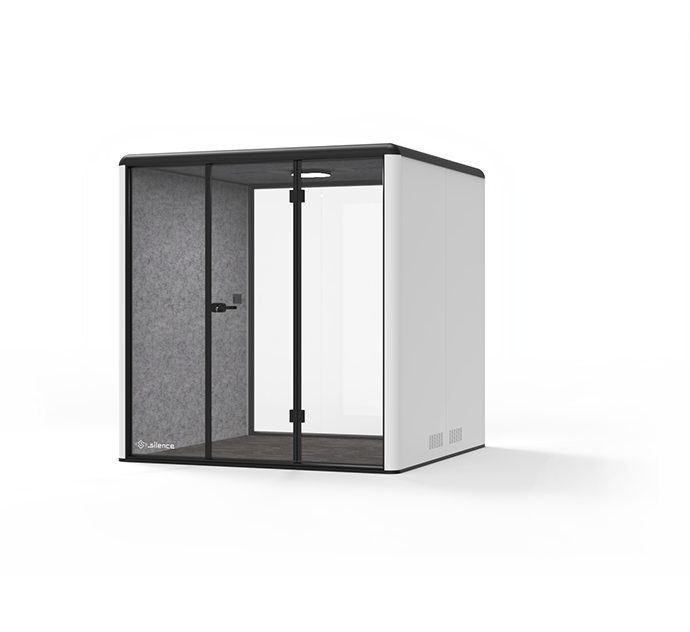

U series XL
Meeting Booth
Dovetail structure, three-way column connection, more convenient to disassemble and assemble, the structure is more stable. Expandable functions are.
SOUNDPROOFING
30±5dB
SINGLE FAN AIRFLOW
170CFM
LIGHTING
24W
01
Main material
1.5MM thick T6065 aluminum profile frame; three-way fixings; aluminum alloy veneer top plate base plate, solid core sound insulation layer; aluminum pool car shockproof glue.
02
Glass panel
Front 5+5mm laminated 3C certified train-grade safety tempered ultra-clear glass door; rear 10mm single layer C certified train-grade safety tempered ultra-clear glass.
03
Power and lighting
Adapt to 100-240V/50-60Hz and 12V-USB powersupply; the cabin equipped with internationalsockets and USB interfaces, and there are alsoreserved cabin exterior connection ports andnetwork cable ports; 4000K color temperature LED,light source light: 80-90lm/w, 24W flat light source,to provide continuous and stable lighting for thecabin, reduce visual fatigue, three-color lights, andswitch at will between work and rest modes.
04
Ventilation system
PD long-path maze-style low-noise fresh air system,with anti-leak sound design to reduce soundinteraction between the cabin and the outside,complete a cabin air update every 2-3 minutes,ensuring that the cabin air is fresh and avoidingstuffiness.
05
Carpet
Detachable environmental protection floor mat,non-fluidized butyl rubber applied to the modularfloor mat underlay, woven surface of short PE fiberwith touch ABS bracket cushion layerand switch atwill between work and rest modes.
06
Door lock
The door lock uses a high-quality zinc alloy lock,which is beautiful and atmospheric, and has strongcorrosion resistance.The lock core material is a brasscore, which is safe and wear-resistant.
Color customization
The color of the exterior finishes and interiorfinishes can be customized.
Exterior Finishes
Interior Finishes

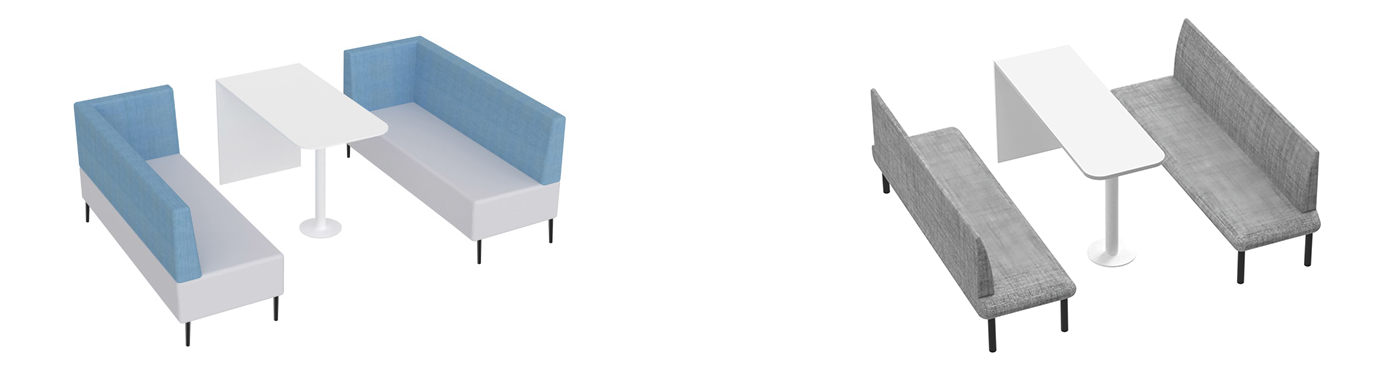

Furniture selection
Various styles of furniture areavailable for selection.

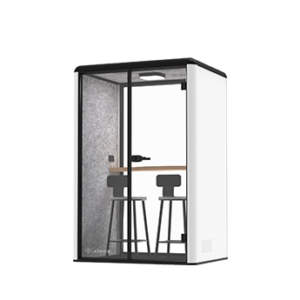

Model S specific

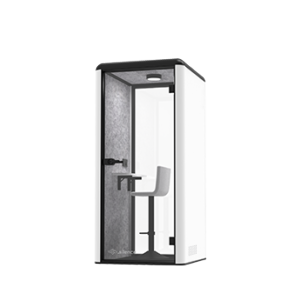

Model M specific
